Valves

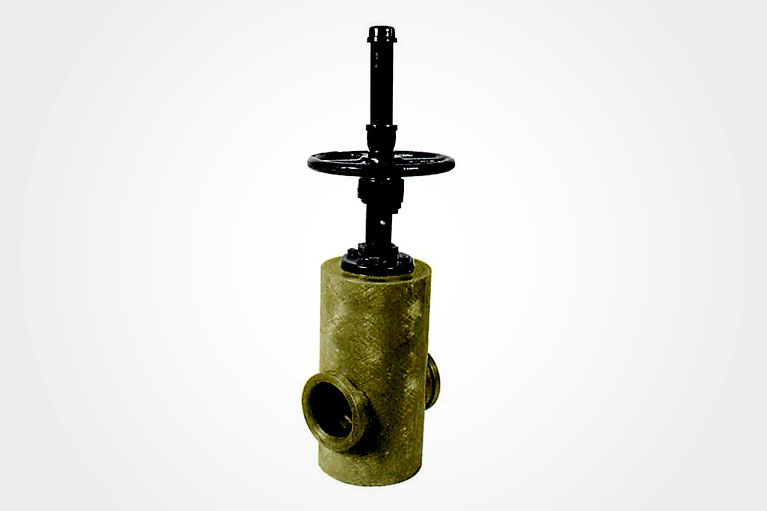

LITTLE GAINT gate valves are full – opening for fast and efficient Pipeline maintenance and cleaning operations. There are on corrosive or metal parts in contact with pipeline fluids in either the open or closed position. The fast – rising stem has a rubber coating which protects it in all positions. Valves are prelubricated and fitted with grease fitting at the factory and are constructed with an easily adjustable packing rubber. LITTLE GIANT gate valves are available with threaded connections or gasketed for use on iron pipe size lines or with asbestos – cement pipelines.
100 psi for 3" through 8"
50 psi for 10" through 12"
Body — Filament wound, high strength Fiberglass – Epoxy
Gate — Rubber and/or composites
Stem — coated high strength steel
Handle/ Hardware — Cast iron/steel
Gaskets — High tensile oil resistant rubber (nitrile)
| SIZE | LIST PRICE |
|---|---|
| 3" | $851.60 |
| 4" | $1,155.88 |
| 6" | $1,573.57 |
| 8" | $1,990.86 |
| 10" | $2,351.85 |
| 12" | Call for price and availability |

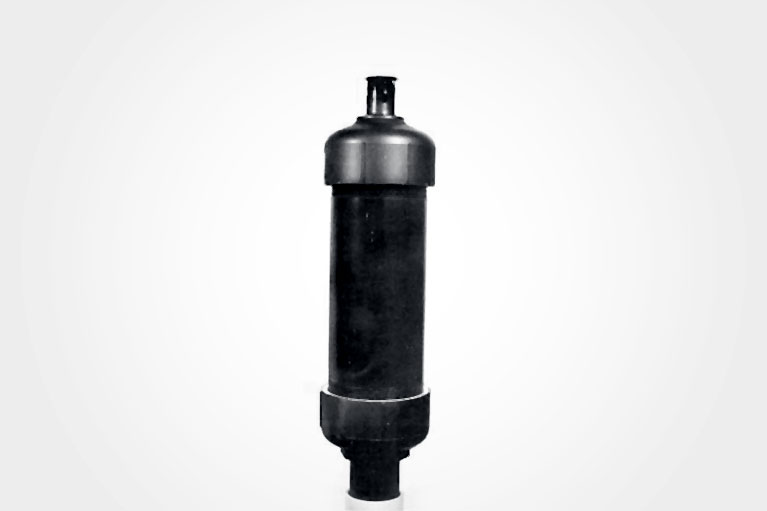

Body & float high impact pvc.valve automatically prevents air from entering the line; prevents fluid from escaping and allows air or gas to escape as needed.
Constructed of high-impact pvc with a bottom o-ring seal. Side hose fitting attaches to customer supplied flexible hose and catch basin. Splash guard fits over the 1’’ nipple on the top cap if the air-gas relief valve and is secured in place by tightening the 1’’ pvc cap.
| BOTTOM CONNECTION | STYLE | WORKING PRESSURE-PSI | Wt. Lbs | HEIGHT | PRICE |
|---|---|---|---|---|---|
| 2" Female | A | 25 | 7 | 14" | $169.16 |
| 2" Female | B | 65 | 7 | 14" | $169.16 |
| 2" | C* | * | 10 | 26" | $195.66 |

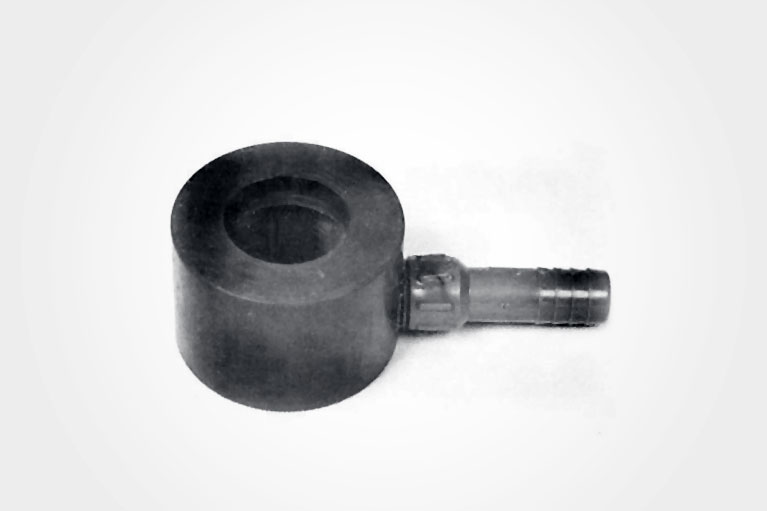

Splash guard –Fits style A, B. and C relief valve ... $28.48
* The style c valve can be adapted to work either style a or style b pressure and is recommended where large volumes of fluids are handled.
We specialize in underground pipeline repair fittings manufactred with filament wound fiberglass. Our products are inherently corrosion-resistant, non-conductive, lightweight, and extremely durable. All of our products are made with pride in the USA.
