Bolted Couplings

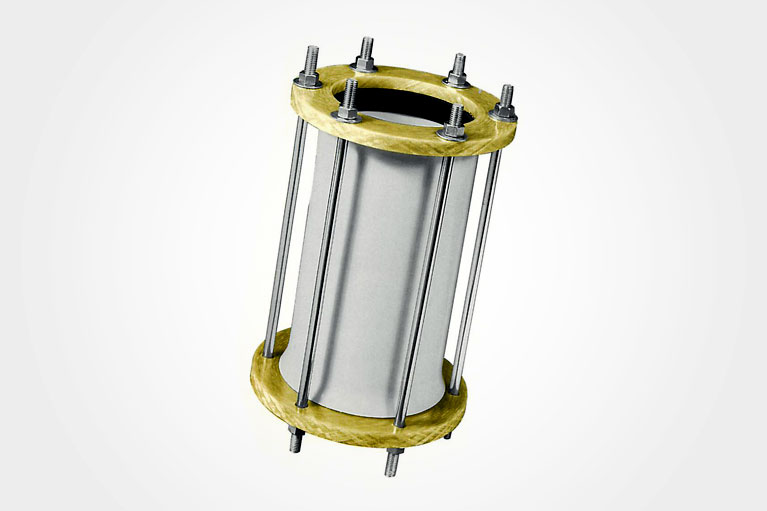

Available in 6" through 12"
For plastic irrigation pipe (PIP)
100 PSI
12" and 18”
Specify size (O.D.) and type of pipe
Body — PVC plastic
Flanges — fiberglass
Gaskets — style 40 wedge type.oil resistant rubber available on request
Bolts — zinc plated steel are standard. stainless steel or brass are available on request
Working Pressure: 100 PSI
| PIPE SIZE & TYPE | # OF BOLTS | 12" BODY LENGTH | 18" BODY LENGTH |
|---|---|---|---|
| 6" PIP | 6 | $113.00 | $120.52 |
| 8" PIP | 6 | $149.76 | $161.14 |
| 10" PIP | 8 | $191.64 | $208.29 |
| 12" PIP | 8 | $220.88 | $239.73 |
Working Pressure: 125 PSI
| PIPE SIZE & TYPE | # OF BOLTS | 12" BODY LENGTH | 18" BODY LENGTH |
|---|---|---|---|
| 4" IPS | 4 | $85.68 | $93.09 |
| 6" IPS | 6 | $125.39 | $136.30 |
| 8" IPS | 6 | $157.51 | $171.22 |
| 10" IPS | 8 | $183.31 | $199.25 |
Working Pressure: 100 PSI
| PIPE SIZE & TYPE | # OF BOLTS | 12" BODY LENGTH | 18" BODY LENGTH |
|---|---|---|---|
| 6" PIP | 6 | $191.65 | $222.38 |
| 8" PIP | 6 | $227.03 | $261.53 |
| 10" PIP | 8 | $294.92 | $342.36 |
| 12" PIP | 8 | $323.06 | $372.58 |
Working Pressure: 125 PSI
| PIPE SIZE & TYPE | # OF BOLTS | 12" BODY LENGTH | 18" BODY LENGTH |
|---|---|---|---|
| 4" IPS | 4 | $147.67 | $160.52 |
| 6" IPS | 6 | $195.92 | $212.95 |
| 8" IPS | 6 | $246.11 | $267.54 |
| 10" IPS | 8 | $269.58 | $293.03 |
Available in 2’’ through 16’’

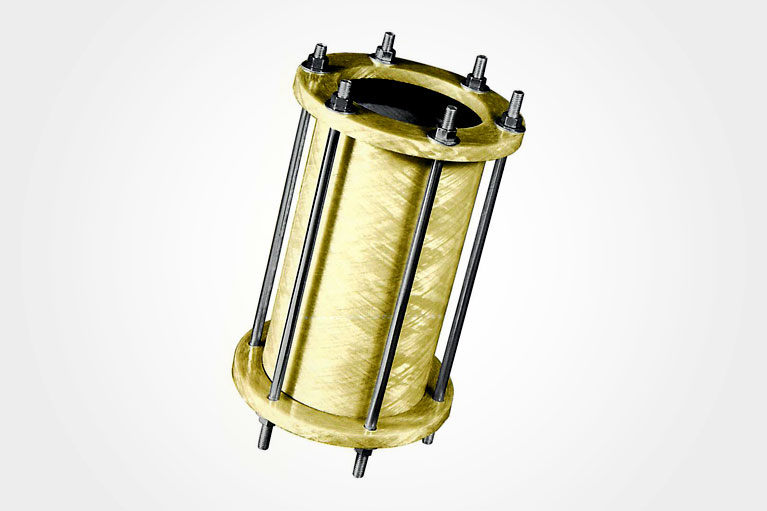

For plastic irrigation pipe ( PIP), iron pipe size ( IPS ) , fiberglass , asbestos –cement , cast iron , or aluminum.
300 PSI
12" and 18" are standard. Longer lengths available on request.
Specify size (O.D. ) and type of pipe.
For joining lines of different size and / or materials. Available on request.
Body & Flanges — Fiberglass.
Gaskets — Style 40 wedge type. Oil resistant rubber available on request.
Bolts — Zinc plated steel are standard. Stainless steel or brass are available on request.
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 4"PIP | 4 | $108.64 | $141.04 | $171.43 | $203.80 |
| 6" PIP | 6 | $137.79 | $185.04 | $239.37 | $283.79 |
| 8" PIP | 6 | $178.22 | $234.73 | $298.40 | $362.07 |
| 10" PIP | 8 | $216.03 | $279.73 | $363.11 | $446.53 |
| 12" PIP | 8 | $234.79 | $314.60 | $415.72 | $516.86 |
| 14" PIP (14.35"OD) | 8 | N/A | $420.76 | $585.20 | $749.57 |
| 15" PIP (15.30"OD) | 8 | N/A | $455.58 | $610.19 | $775.50 |
| 16"PIP(16.375"OD) | 8 | N/A | $523.16 | $697.36 | $871.56 |
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 2" IPS | 3 | $83.89 | $98.07 | $119.85 | $141.60 |
| 2 1/2" IPS | 3 | $96.97 | $108.95 | $129.72 | $150.44 |
| 3" IPS | 3 | $109.58 | $121.37 | $143.09 | $164.82 |
| 4" IPS | 4 | $122.67 | $143.14 | $174.78 | $206.34 |
| 5 1/2" IPS | 4 | $151.65 | $173.80 | $216.95 | $261.24 |
| 6" IPS | 6 | $167.79 | $198.30 | $244.08 | $289.90 |
| 8" IPS | 6 | $203.27 | $265.99 | $328.75 | $391.47 |
| 10" IPS | 8 | $206.34 | $292.92 | $379.52 | $466.10 |
| 12" IPS | 8 | $253.96 | $342.77 | $454.66 | $546.74 |
| 14" IPS (14.00" OD) | 8 | N/A | $509.72 | $691.61 | $849.67 |
| 16" IPS (16.00" OD) | 8 | N/A | $464.67 | $622.88 | $790.15 |
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 3" AC | 3 | $122.32 | $140.00 | $161.54 | $183.28 |
| 4" AC | 4 | $130.47 | $157.09 | $191.53 | $223.13 |
| 6" AC | 6 | $181.27 | $217.30 | $262.08 | $307.89 |
| 8" AC | 6 | $209.24 | $280.03 | $334.24 | $396.98 |
| 10" AC | 8 | $215.78 | $299.53 | $385.75 | $472.33 |
| 12" AC | 8 | $259.88 | $360.43 | $465.52 | $557.58 |
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 4"PIP | 4 | $142.80 | $188.65 | $234.53 | $260.55 |
| 6" PIP | 6 | $191.68 | $270.11 | $348.57 | $427.00 |
| 8" PIP | 6 | $230.47 | $317.94 | $405.32 | $492.74 |
| 10" PIP | 8 | $276.85 | $391.94 | $507.05 | $622.13 |
| 12" PIP | 8 | $293.32 | $425.65 | $557.59 | $689.76 |
| 14" PIP (14.35"OD) | 8 | N/A | $531.65 | $727.06 | $922.47 |
| 15" PIP (15.30"OD) | 8 | N/A | $566.45 | $764.76 | $963.06 |
| 16"PIP(16.375"OD) | 8 | N/A | $634.05 | $839.26 | $1,044.46 |
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 2" IPS | 3 | $111.41 | $132.71 | $164.28 | $195.79 |
| 2 1/2" IPS | 3 | $126.09 | $146.96 | $179.29 | $211.62 |
| 3" IPS | 3 | $137.79 | $158.47 | $191.69 | $224.95 |
| 4" IPS | 4 | $162.04 | $194.02 | $240.76 | $274.04 |
| 5 1/2" IPS | 4 | $194.09 | $247.07 | $306.33 | $360.97 |
| 6" IPS | 6 | $226.44 | $290.53 | $362.56 | $434.62 |
| 8" IPS | 6 | $276.31 | $339.92 | $436.36 | $532.81 |
| 10" IPS | 8 | $333.02 | $412.42 | $518.22 | $623.97 |
| 12" IPS | 8 | $367.64 | $433.08 | $541.03 | $649.00 |
| 14" IPS (14.00" OD) | 8 | N/A | $632.66 | $843.36 | $1,054.07 |
| 16" IPS (16.00" OD) | 8 | N/A | $587.63 | $779.89 | $966.02 |
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 3" AC | 3 | $150.55 | $177.15 | $210.12 | $244.60 |
| 4" AC | 4 | $169.85 | $207.96 | $257.52 | $290.81 |
| 6" AC | 6 | $239.98 | $309.52 | $380.55 | $452.58 |
| 8" AC | 6 | $282.29 | $353.96 | $441.87 | $538.32 |
| 10" AC | 8 | $342.45 | $419.05 | $524.45 | $630.19 |
| 12" AC | 8 | $373.55 | $450.71 | $551.87 | $659.78 |
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 4" PIP x 4" IPS | 4 | $184.02 | $214.75 | $262.18 | $309.58 |
| 6" PIP x 6" IPS | 6 | $251.64 | $297.44 | $366.14 | $434.80 |
| 8" PIP x 8" IPS | 6 | $304.88 | $401.06 | $493.13 | $587.27 |
| 10" PIP x 10" IPS | 8 | $309.57 | $439.39 | $569.26 | $699.13 |
| 12" PIP x 12" IPS | 8 | $380.96 | $514.13 | $682.04 | $816.47 |
The above prices are for Couplings with the Transition made in the body of the Coupling.
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 6" PIP x 6" IPS | 6 | $182.64 | $213.15 | $258.98 | $304.74 |
| 8" PIP x 8" IPS | 6 | $219.25 | $281.99 | $344.76 | $407.52 |
| 10" PIP x 10" IPS | 8 | $224.54 | $311.14 | $397.71 | $484.29 |
| 12" PIP x 12" IPS | 8 | $272.44 | $361.27 | $473.16 | $565.26 |
The above prices are for IPS Couplings with a Transition Gasket to change to the PIP size.
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 3" IPS x 3" AC | 3 | $183.47 | $210.02 | $242.31 | $274.94 |
| 4" IPS x 4" AC | 4 | $195.73 | $235.67 | $287.31 | $335.04 |
| 6" IPS x 6" AC | 6 | $271.92 | $325.94 | $393.10 | $461.83 |
| 8" IPS x 8" AC | 6 | $313.87 | $420.08 | $501.38 | $595.53 |
| 10" IPS x 10" AC | 8 | $323.72 | $449.33 | $578.62 | $708.47 |
| 12" IPS x 12" AC | 8 | $389.85 | $540.66 | $698.28 | $836.40 |
The above prices are for Couplings with the Transition made in the body of the Coupling.
Call for pricing information on combinatins of sizes and types not listed above.
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 4" PIP x 4" IPS | 4 | $243.05 | $291.06 | $361.16 | $411.04 |
| 6" PIP x 6" IPS | 6 | $339.66 | $435.76 | $545.26 | $651.95 |
| 8" PIP x 8" IPS | 6 | $414.46 | $509.88 | $654.58 | $799.26 |
| 10" PIP x 10" IPS | 8 | $499.49 | $618.67 | $777.31 | $935.95 |
| 12" PIP x 12" IPS | 8 | $551.45 | $649.63 | $811.57 | $973.47 |
The above prices are for Couplings with the Transition made in the body of the Coupling.
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 6" PIP x 6" IPS | 6 | $241.33 | $305.43 | $377.43 | $449.52 |
| 8" PIP x 8" IPS | 6 | $276.31 | $371.91 | $452.38 | $548.86 |
| 10" PIP x 10" IPS | 8 | $351.19 | $430.64 | $536.39 | $642.15 |
| 12" PIP x 12" IPS | 8 | $386.14 | $451.62 | $559.56 | $667.48 |
The above prices are for IPS Couplings with a Transition Gasket to change the PIP size.
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 3" IPS x 3" AC | 3 | $225.80 | $265.74 | $315.23 | $366.94 |
| 4" IPS x 4" AC | 4 | $254.76 | $311.96 | $386.26 | $436.18 |
| 6" IPS x 6" AC | 6 | $359.96 | $464.25 | $570.84 | $678.94 |
| 8" IPS x 8" AC | 6 | $423.41 | $530.94 | $662.80 | $807.51 |
| 10" IPS x 10" AC | 8 | $513.64 | $628.59 | $786.67 | $945.30 |
| 12" IPS x 12" AC | 8 | $560.30 | $676.10 | $827.81 | $989.71 |
The above prices are for Couplings with the Transition made in the body of the Coupling.
Call for pricing information on combinatins of sizes and types not listed above.

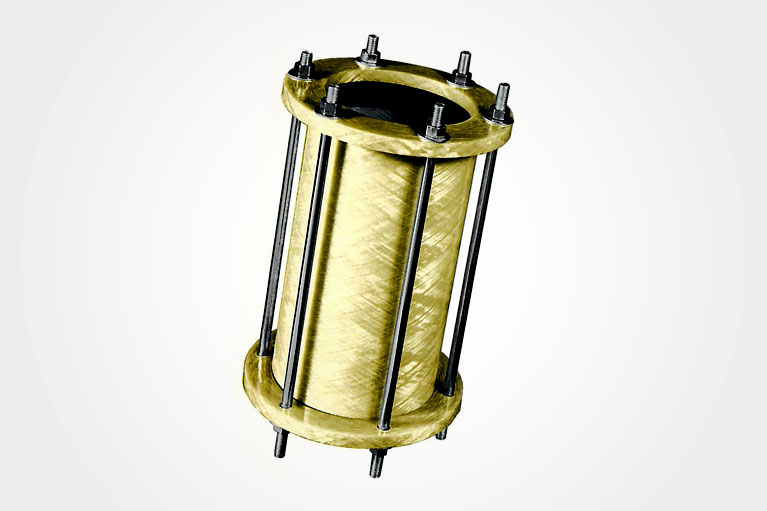

Available in 2" through 12"
For iron pipe sizes (IPS), plastic, aluminum, asbestos – cement, and fiberglass pipe.
500 PSI
6", 12", and 18" are standard. Longer lengths available on request.
Specify size (O. D.) and type of pipe.
For joining lines of different sizes and / or materials. Available on request.
Body and flanges — Fiberglass
Gaskets — Hexagonal type oil resistant rubber (Nitrile).
Bolts — Zinc plated steel are standard. Stainless steel or brass are available on request.
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 2" IPS | 3 | $91.83 | $141.02 | $177.40 | $213.98 |
| 2 1/2" IPS | 3 | $113.11 | $150.94 | $191.46 | $225.93 |
| 3" IPS | 3 | $127.90 | $167.36 | $211.29 | $256.38 |
| 4" IPS | 4 | $145.62 | $189.49 | $239.98 | $322.12 |
| 6" IPS | 6 | $172.05 | $222.29 | $278.96 | $352.53 |
| 8" IPS | 6 | $207.59 | $271.52 | $343.32 | $433.31 |
| 10" IPS | 8 | $242.32 | $310.53 | $386.01 | $472.23 |
| 12" IPS | 8 | $269.59 | $348.74 | $459.13 | $553.99 |
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 3" AC | 3 | $140.66 | $186.03 | $229.73 | $274.77 |
| 4" AC | 4 | $152.15 | $203.43 | $256.72 | $338.86 |
| 6" AC | 6 | $185.57 | $241.22 | $296.95 | $370.52 |
| 8" AC | 6 | $213.57 | $285.57 | $348.80 | $438.79 |
| 10" AC | 8 | $251.72 | $317.13 | $392.27 | $478.48 |
| 12" AC | 8 | $275.52 | $366.39 | $469.99 | $564.81 |
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 3" IPS x 3" AC | 3 | $211.00 | $279.05 | $344.55 | $412.19 |
| 4" IPS x 4" AC | 4 | $228.17 | $305.21 | $385.05 | $508.29 |
| 6" IPS x 6" AC | 6 | $278.37 | $361.85 | $445.44 | $555.76 |
| 8" IPS x 8" AC | 6 | $320.33 | $428.34 | $523.23 | $658.18 |
| 10" IPS x 10" AC | 8 | $377.60 | $475.72 | $588.35 | $717.67 |
| 12" IPS x 12" AC | 8 | $413.28 | $549.58 | $704.95 | $847.21 |
Call for pricing information on combinatins of sizes and types not listed above.
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 2" IPS | 3 | $137.12 | $182.84 | $230.63 | $278.35 |
| 2 1/2" IPS | 3 | $140.66 | $195.29 | $250.71 | $306.05 |
| 3" IPS | 3 | $159.55 | $214.20 | $270.54 | $326.89 |
| 4" IPS | 4 | $186.53 | $251.91 | $318.98 | $385.99 |
| 5 1/2" IPS | 4 | $178.56 | $236.39 | $295.88 | $359.12 |
| 6" IPS | 6 | $235.30 | $315.85 | $397.42 | $479.00 |
| 8" IPS | 6 | $287.34 | $353.53 | $453.79 | $554.20 |
| 10" IPS | 8 | $346.31 | $428.97 | $538.96 | $648.90 |
| 12" IPS | 8 | $382.32 | $450.39 | $562.68 | $674.95 |
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 3" AC | 3 | $172.30 | $232.79 | $288.99 | $346.60 |
| 4" AC | 4 | $194.29 | $265.85 | $335.72 | $402.75 |
| 6" AC | 6 | $248.85 | $334.84 | $415.42 | $496.98 |
| 8" AC | 6 | $293.34 | $367.55 | $459.31 | $559.67 |
| 10" AC | 8 | $355.76 | $435.54 | $545.14 | $655.10 |
| 12" AC | 8 | $388.25 | $468.04 | $573.48 | $685.76 |
| PIPE SIZE & TYPE | # OF BOLTS | 6" BODY | 12" BODY | 18" BODY | 24" BODY |
|---|---|---|---|---|---|
| 3" IPS x 3" AC | 3 | $258.49 | $349.28 | $433.44 | $519.92 |
| 4" IPS x 4" AC | 4 | $291.47 | $398.79 | $503.59 | $604.13 |
| 6" IPS x 6" AC | 6 | $373.25 | $502.24 | $623.11 | $745.47 |
| 8" IPS x 8" AC | 6 | $439.99 | $551.33 | $688.96 | $839.47 |
| 10" IPS x 10" AC | 8 | $533.63 | $653.35 | $817.75 | $982.68 |
| 12" IPS x 12" AC | 8 | $582.35 | $702.08 | $860.26 | $1,028.66 |
Call for pricing information on combinatins of sizes and types not listed above.
| PIPE SIZE | PIP | IPS | AC |
|---|---|---|---|
| 2" | N/A | $16.87 | N/A |
| 2 1/2" | N/A | $23.31 | N/A |
| 3" | N/A | $24.43 | $25.50 |
| 4" | $25.50 | $30.57 | $34.29 |
| 6" | $37.00 | $41.13 | $49.19 |
| 8" | $44.56 | $57.73 | $66.73 |
| 10" | $46.23 | $60.51 | $75.65 |
| 12" | $58.80 | $78.41 | $85.87 |
| 14" | $82.23 | N/A | N/A |
| 15" | $86.22 | N/A | N/A |
| 16" | N/A | $103.54 | N/A |
| 1/2" x 9 1/2" Zinc w/ Nuts & Washers (6" Coupling) | $3.75 |
| 1/2" x 16" Zinc w/ Nuts & Washers (12" Coupling) | $4.62 |
| 1/2" x 21" Zinc w/ Nuts & Washers (18" Coupling) | $5.79 |
| 1/2" x 28" Zinc w/ Nuts & Washers (24" Coupling) | $7.23 |
| Zinc Washers | $0.15 |
| Zinc Nuts | $0.25 |
| 1/2" x 9 1/2" Stainless Steel w/ Nuts & Washers (6" Coupling) | $14.93 |
| 1/2" x 16" Stainless Steel w/ Nuts & Washers (12" Coupling) | $19.36 |
| 1/2" x 21" Stainless Steel w/ Nuts & Washers (18" Coupling) | $23.76 |
| 1/2" x 28" Stainless Steel w/ Nuts & Washers (24" Coupling) | $25.98 |
| 316 Stainless Steel Washers | $0.65 |
| 316 Stainless Steel Nuts | $0.97 |
Hex gaskets are for use in little giant high-pressure bolted couplings with a 45° bevel in both the coupling body and flange. LG FT AC Gaskets are for use in fluid-tite dimensioned asbestos-cement pipe and fittings. LG AC CG Gaskets are made to common groove dimensions to fit most other asbestos-cement pipe and fittings. LG PVC Gaskets are for use in Gasketed ips dimensions of pvc pipe and fittings.Please order by size and part number. Also, specify class and manufacturer of asbestos-cement if applicable.
| PIPE SIZE | GASKET PART NUMBER | PRICE EACH | PART NUMBER | PRICE EACH | |||
|---|---|---|---|---|---|---|---|
| LG FT AC | LG AC CG | LG PVC | HEX | ||||
| 2" | - | - | 472 | $4.84 | 21 | $5.55 | |
| 2 1/2" | - | - | 421A | $5.04 | 617 | $5.98 | |
| 3" | 297 | - | 421B | $5.28 | 23 | $8.56 | |
| 4" | 298 | - | 473 | $5.64 | 30 | $10.17 | |
| 6" | 303 | 433 | 474 | $7.70 | 79 | $12.27 | |
| 8" | 311 | 547 | - | $9.57 | 80 | $14.43 | |
| 10" | 319 | 548 | - | $12.25 | 341A | $18.33 | |
| 12" | - | 549 | 511 | $13.76 | 341B | $21.58 | |
| NOMINAL PIPE SIZE | PIPE O.D. | PART NUMBER | PRICE EACH |
|---|---|---|---|
| 3/4" IPS | 1.050" | 579 | *** |
| 1" IPS | 1.320" | 580 | *** |
| 1 1/2" IPS | 2.000" | 252 | $3.40 |
| 2" IPS | 2.375" | 44 | $3.33 |
| 2 9/16" O.D. | 2.563" | 199 | *** |
| 2 1/2" IPS | 2.875" | 50 | $3.50 |
| 3 1/4" O.D. | 3.250" | 260 | *** |
| 3" IPS | 3.500" | 42 | $4.04 |
| 4" PIP | 4.000" | 205 | $4.07 |
| 4 1/4" O.D. | 4.250" | 267 | *** |
| 4" IPS | 4.500" | 46 | $5.52 |
| 5" IPS | 5.563" | 206 | $5.54 |
| 6" PIP | 6.000" | 166 | $5.64 |
| 6 3/8" O.D. | 6.375" | 261 | *** |
| 6" IPS | 6.625" | 57 | $6.65 |
| 7" O.D. | 7.000" | 214 | $7.69 |
| 8" PIP | 8.000" | 167 | $8.15 |
| 8" IPS | 8.625" | 165 | $8.70 |
| 10" PIP | 10.000" | 168 | $8.95 |
| 10" IPS | 10.750" | 169 | $9.13 |
| 12" PIP | 12.000" | 170 | $9.33 |
| 12" IPS | 12.750" | 164 | $10.25 |
| 14" PIP/IPS | 14.000" | 373 | $14.20 |
| 15" PIP | 15.300" | 335 | $14.52 |
| 16" PIP/IPS | 16.000" | 345 | $25.47 |
| 6" PIP x 6" IPS TRANSITION | F06 | $20.44 | |
| 8" PIP x 8" IPS TRANSITION | F08 | $24.11 | |
| 10" PIP x 10" IPS TRANSITION | F10 | $27.09 | |
| 12" PIP x 12" IPS TRANSITION | F12 | $27.77 | |
PLEASE ORDER BY SIZE AND PART NUMBER
NOTE: *** These sizes are non-stock, non-returnable, and may require a minimum purchase. Please call for pricing and availability.
We specialize in underground pipeline repair fittings manufactred with filament wound fiberglass. Our products are inherently corrosion-resistant, non-conductive, lightweight, and extremely durable. All of our products are made with pride in the USA.
